The Real Reason Garage Shelves Fail Isn't the Product — It's the Setup
Walk into almost any two-car garage in America and you'll find the same story: a set of metal shelving units leaning slightly to one side, one bolt missing from the cross-brace, and a top shelf loaded with paint cans that nobody has touched in three years. It doesn't look dangerous until one day it is. The frame shifts during an earthquake tremor, or someone bumps the base while pulling out a ladder, and suddenly a few hundred pounds of stored items are on the floor — or worse, on a person.
Here's the thing: the shelf itself usually isn't the problem. Heavy duty metal garage shelving is designed to hold enormous weight — many units are rated for 1,400 to 2,050 pounds across multiple tiers. The problem is almost always in how it was set up. A heavy duty garage shelving unit setup guide isn't glamorous reading, but it's the difference between a storage system that serves you for a decade and one that becomes a hazard after the first rainy season. This guide walks you through every stage of the process, from measuring your floor to distributing your final load, so your setup is solid from day one.
Step 1 — Assess Your Floor Before You Touch a Single Bolt
Most garage floors are not perfectly flat. Even a new concrete pour can have subtle dips, rises, or cracks. This matters enormously for heavy duty shelving because an uneven base means uneven load transfer, which means the frame experiences stress it wasn't designed for. Over time, that stress shows up as wobble, joint loosening, and, in severe cases, structural failure.
How to Check Your Floor
You don't need specialized tools. Lay a long level (4-foot is ideal) across the area where your shelving unit will stand. Do this in at least three directions: left-to-right, front-to-back, and diagonally. Mark any low spots with chalk. A variance of up to ¼ inch over 6 feet is generally workable with adjustable leveling feet, which most quality heavy duty units include. Anything beyond that benefits from a thin concrete leveling compound applied before installation.
Also check for cracks or flaking in the concrete directly under your intended footprint. A cracked surface doesn't distribute load the same way, and a shelf rated for 2,050 pounds needs a floor that can accept that force evenly across four or six contact points.
Step 2 — Plan Your Zone Layout Before Assembly Begins
One of the most common setup mistakes is assembling the shelf first and then deciding where to put it. Do it backwards: plan your zone layout on paper (or just mentally) before you open the box.
Measuring Your Wall Space
Start with your wall dimensions. A shelf that's 71 inches tall and 35 inches wide sounds like it should fit anywhere — until you realize the overhead garage door track sits 36 inches from the side wall, or the electrical panel is exactly where you wanted the second unit. Measure twice, sketch it out, and mark the floor with painter's tape to visualize the footprint.
Traffic Flow and Accessibility

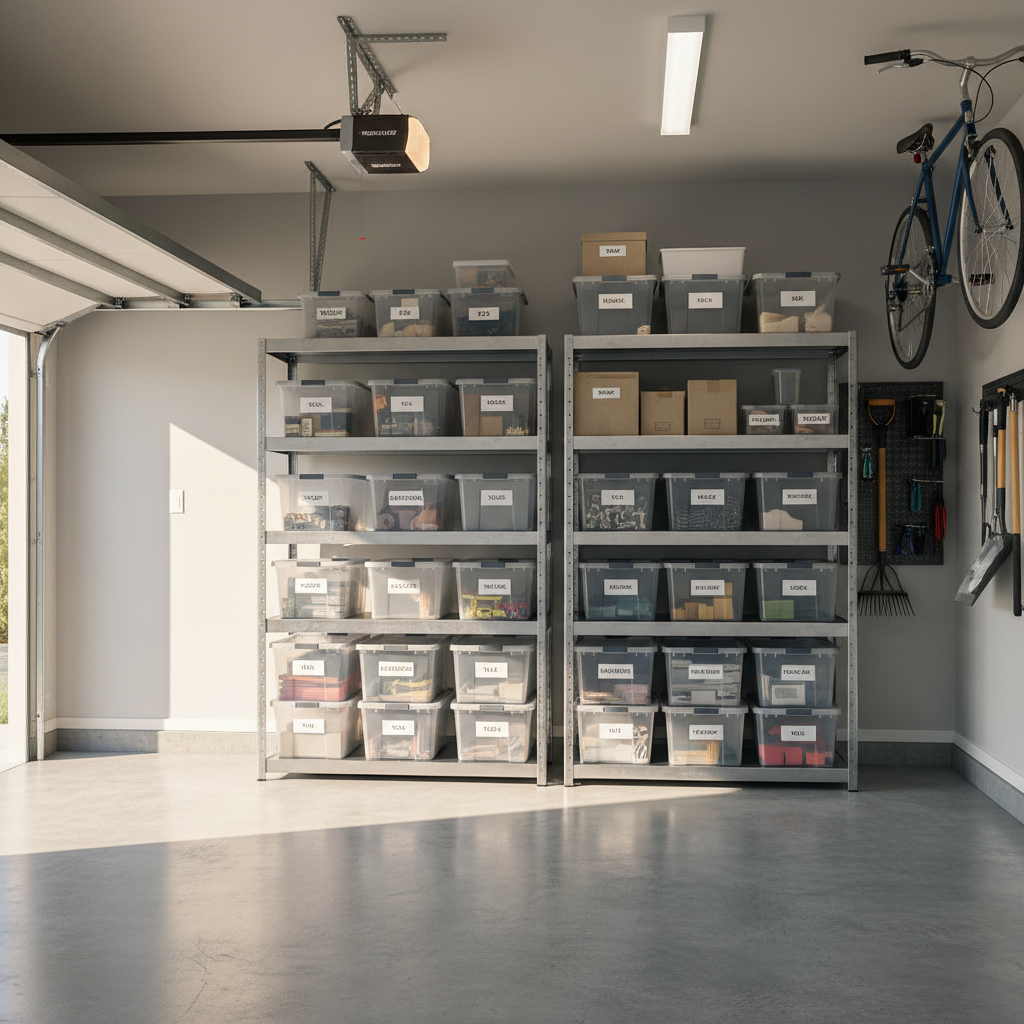

Consider how you'll actually use the space. You need at least 36 inches of clear aisle space in front of any shelf you access regularly. If you're setting up a set of two units side by side — which maximizes your storage density — make sure the combined width still leaves enough room to open car doors and move around comfortably. For a two-car garage, most people find that running shelving along one full side wall and the back wall creates the best balance of storage and accessibility.
Electrical and Structural Considerations
Never position a heavy shelf unit directly in front of an electrical panel or GFCI outlet. Not only is it a code issue in some jurisdictions, it's a practical safety hazard. Also note any wall studs if you plan to anchor the unit — which I'll cover in a later step.
Step 3 — Organize Your Hardware Before You Start Building
This sounds trivial, but a poorly organized hardware session is responsible for a surprising number of incomplete or incorrectly assembled shelving units. Open the box and lay everything out on a clean surface. Separate bolts by size, count your shelf decks, identify the top and bottom frame rails, and verify that nothing is missing against the parts manifest in the manual.
If you're setting up a two-unit set of 5-tier all-metal garage shelves, you're dealing with two complete frames simultaneously — which doubles the hardware. Keeping them sorted and labeled from the start saves significant time and prevents the frustrating discovery mid-assembly that you've used a bolt from the second unit on the first.
Tools You'll Actually Need
- A rubber mallet (for seating shelf decks without damaging the coating)
- A socket wrench or ratchet set (faster and more consistent torque than a hand wrench)
- A 4-foot level
- A stud finder (if wall anchoring)
- Safety glasses (metal frames have sharp edges during assembly)
- A second person — seriously, this is a two-person job for any unit taller than 48 inches
Step 4 — Assembly Sequence: Build from the Ground Up, Not the Top Down
Every major shelving manufacturer recommends assembling on the floor first rather than standing the unit upright and adding shelves one by one. Here's the sequence that works consistently across most bolt-together heavy duty designs:
- Connect the two side frame panels using the bottom shelf deck first. This creates the foundational rectangle.
- Add the remaining shelf decks from bottom to top, leaving all bolts finger-tight at this stage.
- Install cross-bracing (the diagonal support bars on the back or sides). Do not skip this step. Cross-bracing is what prevents racking — the parallelogram deformation that makes a shelf feel wobbly even when all bolts are tight.
- Square the frame by measuring diagonally from corner to corner. Both diagonal measurements should match. Adjust the frame gently until they do.
- Torque all bolts to spec using your socket wrench. Most units specify snug-tight, meaning firmly seated with no play, rather than a specific torque value. Work in a pattern — tighten opposite corners alternately, not one side at a time.
- Stand the unit upright with your second person's help. Never attempt to right a fully assembled heavy duty frame alone.
Adjustable Shelf Tiers
Most quality heavy duty garage shelving units today offer adjustable tier spacing, which is one of the most underused features in setup. Before you finalize your bolt positions, think about what you're actually storing. A bottom tier set at 18 inches high is ideal for large bins and tool bags. Upper tiers spaced at 12 inches work well for smaller boxes and paint cans. Spending five minutes on tier spacing at assembly time saves hours of reorganization later.
Step 5 — Leveling After the Unit Is Standing
Once upright, check level again — both side-to-side and front-to-back. If your unit has adjustable leveling feet (most heavy duty models do), now is the time to dial them in. Turn the feet clockwise to raise that corner, counter-clockwise to lower it. Check level after each adjustment. A properly leveled unit should not rock at all when you press a top corner firmly.
If your unit lacks adjustable feet and you have a floor variance greater than ¼ inch, thin rubber shims work well. Avoid wood shims, which compress over time under heavy load and allow the unit to gradually sink and tilt.
Step 6 — Wall Anchoring: When It's Required and How to Do It Right
Here's a topic that gets glossed over in most assembly instructions: wall anchoring isn't optional for tall, heavily loaded units. Any freestanding shelf taller than 60 inches that will regularly hold significant weight should be anchored to the wall, especially in garages where the floor may get wet, where there are seismic considerations, or where children might have access.
Finding the Right Studs
Use a stud finder to locate two studs within reach of your shelf's top frame. Mark them clearly. Garage walls typically have studs on 16-inch or 24-inch centers. If your shelf's top rail doesn't align conveniently with a stud, use a horizontal mounting board (a 2x4 screwed into two studs) as an intermediary, then anchor the shelf to the board.
Anti-Tip Hardware
Most heavy duty sets include anti-tip straps or L-brackets. If yours didn't, these are inexpensive to purchase separately. A single L-bracket through the top frame rail into a wall stud is enough to prevent tip-over — it doesn't need to bear the shelf's weight, just arrest forward motion in a tip scenario. Use 3-inch or longer wood screws for a meaningful bite into the stud.
Step 7 — Load Distribution: The Rule Most People Break Immediately
You've done everything right up to this point. Here's where the setup guide becomes a storage guide, because how you load the shelf is as important as how you built it.
The Bottom-Heavy Principle
Always load the heaviest items on the lowest tiers. This keeps the center of gravity low, which reduces the tip risk and reduces the bending stress on upper frame joints. Concrete blocks, tool chests, car batteries, water containers — all of these belong near the floor. Lighter, bulkier items like holiday decorations and sleeping bags go up top.
Distribute Weight Evenly Side to Side
A shelf rated for 2,050 pounds total capacity doesn't mean you can put all 2,050 pounds on one side of one tier. Weight should be spread evenly across the shelf deck surface and balanced left-to-right across the frame. Eccentric loading — piling everything on one side — stresses the frame asymmetrically and is a leading cause of joint fatigue over time.
Respect Per-Tier Ratings
Total capacity and per-tier capacity are different numbers. A 5-tier unit rated at 2,050 pounds total might have a per-tier limit of 400-500 pounds. Check your documentation and stay below it. For heavy duty shelving with wide utility designs — like a wide 5-tier adjustable metal shelving unit — the per-tier rating is often higher due to the extended deck surface area, but you still need to confirm it for your specific unit.
Step 8 — Post-Setup Inspection and Ongoing Maintenance
A heavy duty garage shelving setup is not a one-and-done project. Schedule a quick inspection every six months, especially if your garage experiences temperature extremes (hot summers, freezing winters) or humidity fluctuations that can cause mild metal expansion and contraction.
What to Check
- Bolt tightness: Re-torque any bolts that feel loose. Thermal cycling and vibration from foot traffic can gradually loosen connections.
- Rust or corrosion: Check the frame and shelf decks for surface rust, especially near the floor where moisture collects. Wipe down and apply a light coating of clear rust inhibitor if needed.
- Shelf deck deformation: Press down on loaded shelf decks and watch for unusual flex. Some deflection is normal, but visible sagging (more than ¼ inch at mid-span under full load) indicates you've exceeded the tier limit or the deck has fatigued.
- Leveling feet: Recheck level annually. Concrete floors can settle subtly over time.
- Wall anchor security: Give the anti-tip bracket a firm tug to confirm it hasn't worked loose from the stud.
Quick-Reference Setup Checklist
- ✅ Floor checked for level and structural integrity
- ✅ Layout planned with measurements, traffic flow, and electrical clearance verified
- ✅ All hardware inventoried and sorted before assembly begins
- ✅ Unit assembled flat on floor in correct sequence (bottom tier first, cross-bracing installed)
- ✅ Frame squared diagonally before bolts torqued
- ✅ All bolts tightened in alternating pattern
- ✅ Unit leveled after standing, using adjustable feet or shims
- ✅ Wall anchored with L-bracket or anti-tip strap into stud
- ✅ Heaviest loads on lowest tiers, weight balanced side to side
- ✅ Per-tier capacity verified and respected
- ✅ Inspection scheduled for six months out
Getting a heavy duty garage shelving unit setup right the first time isn't complicated — it's methodical. The steps above take most people two to three hours for a two-unit installation, and that time investment pays back every time you load, unload, or walk past your storage wall without a second thought about whether it's safe. A well-built, properly loaded shelf almost disappears into the background of your garage — which is exactly where good infrastructure belongs.
